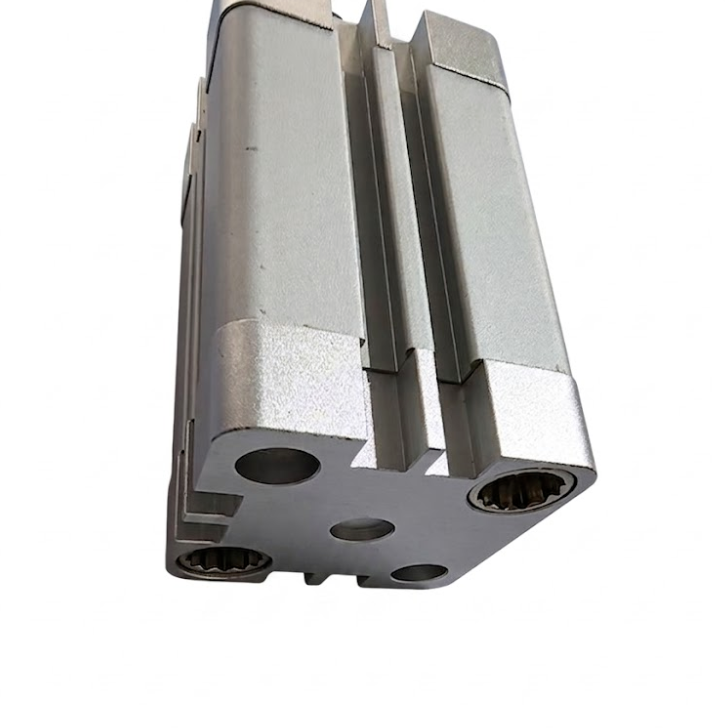

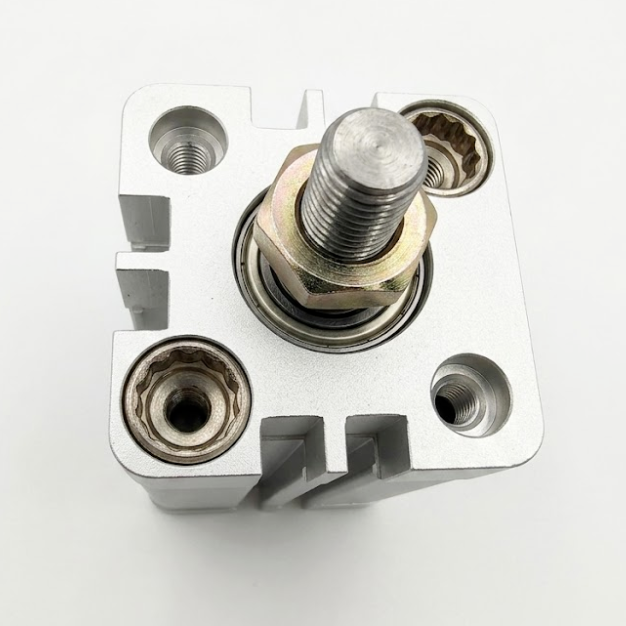

The ACE Series Compact Pneumatic Cylinder is designed strictly in accordance with the international ISO 21287 standard, ensuring exceptional dimensional cross-brand interchangeability across global automated assembly networks. Featuring a highly space-efficient architecture, the ACE series provides a significant space-saving advantage compared to standard ISO 15552 tie-rod cylinders.
The following data reflects the standardized operational limitations of the PRIUS ACE compact cylinder family:
| Parameter | Specification Details |
| Bore Sizes (mm) |
12, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 |
| Proof Pressure |
1.5 MPa (215 Psi) |
| Operating Temperature |
-20°C to 70°C |
| Speed Range (Double Acting) |
30 to 500 mm/s |
| Speed Range (Single Acting) |
50 to 500 mm/s |
| Piping Port Size (Bore 12–25) |
M5×0.8 |
| Piping Port Size (Bore 32–100) |
G1/8" |
| Piping Port Size (Bore 125) |
G1/4" |
| Thread Standard Options |
PT Thread, NPT Thread, G Thread |
Standard Stroke Matrix by Model TypeStandard Compact (ACE): Bore 12–16 (Max stroke 30–75mm) | Bore 20–25 (Max stroke 100–150mm) | Bore 32–125 (Max stroke 200–300mm).
Single Acting Models (ASE/ATE): Bore 12 (Max stroke 10mm) | Bore 16–100 (Max stroke 25mm).
Guided Compact Models (TACE/TACED): Built-in guide rods to completely isolate piston rods from rotational stress. Maximum strokes up to 100mm.
Adjustable Stroke Double Rod (ACEJ): Allows customizable stroke adjustment ranges including 10mm, 20mm, 30mm, 40mm, 50mm, 75mm, and 100mm.
Massive 50% Space Optimization: Its compact footprint seamlessly integrates into tight enclosures, saving significant installation space over conventional ISO 15552 designs.
Ultra-Durable Hard-Anodized Barrel: The internal wall of the cylinder block undergoes an advanced hard-anodizing treatment post-machining, guaranteeing great wear resistance and prolonged operational lifespans.
Advanced Double-Lip Bidirectional Seal: The piston rod utilizes a structural bidirectional seal with an integrated oil-storage function, ensuring low starting pressures and stable sealing.
Integrated Sensor Grooves: Three sides of the aluminum extrusion profile feature built-in proximity sensor slots, allowing flush sensor mounting without extra brackets.
Robust Threaded End Caps: Front and rear caps are secured via high-strength screw-threaded joints, drastically improving maintenance accessibility and body strength.
Lithium-ion Battery Pack Production: High-frequency cell sorting, positioning jigs, and clamping modules.
Semiconductor Assembly Lines: Compact electronic component pick-and-place grippers requiring absolute mechanical stability.
Automated Medical Devices: Space-confined laboratory liquid handling axes and pharmaceutical packing gear.
Precision Testing Fixtures: Precise alignment of test probes against delicate workpieces without velocity shock.
Q: Can these cylinders handle non-lubricated air supply networks?
A: Yes. The PRIUS ACE series features high-grade factory pre-lubrication, permitting highly efficient performance on dry, non-lubricated compressed air grids.
Q: How do I order a model with position feedback capabilities?
A: Add the suffix "S" in the magnetic code slot (e.g., ACE20x30-S) to specify an internal permanent magnetic ring, compatible with flush-mounted proximity switches.
Q: Are custom mounting brackets available?
A: Yes, PRIUS provides full accessory support including Flanges (FA/FB), Foot brackets (LB), Clevis mounts (CA/CB/CR), and Trunnions.
